SU8600 Field-Emission SEM

Ultrahigh-resolution FE SEM with cold field emitter

WHY CHOOSE THE SU8600

The SU8600 brings in a new era of ultrahigh-resolution cold-field emission scanning electron microscopes to the long-standing Hitachi EM lineup. This revolutionary CFE-SEM platform incorporates multifaceted imaging, automation, increased system stability, efficient workflows for users of all experience levels, and more.

Features

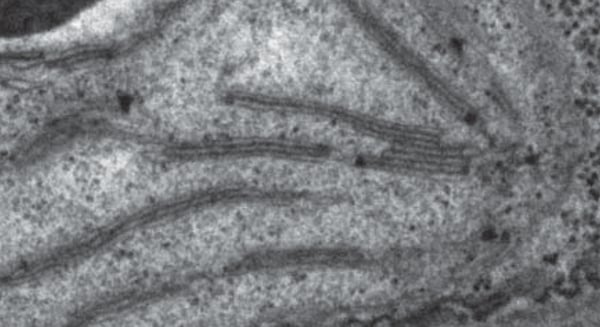

UltraHigh-Resolution

Hitachi’s high-brightness cold field emission source provides ultrahigh-resolution images even at Ultra-low voltages.

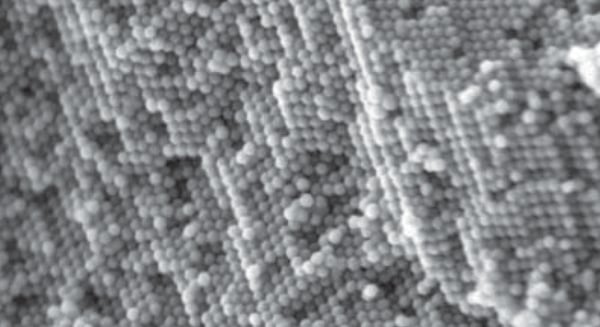

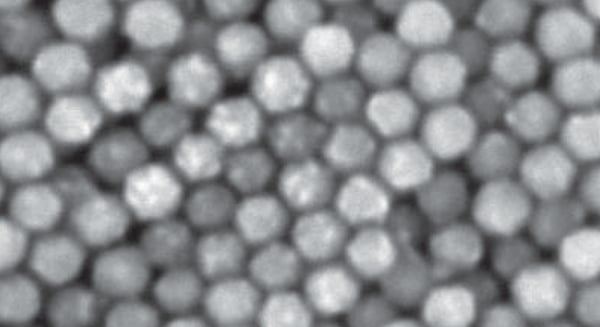

Image: Left: RHO-type Zeolite particle at low-kV. In order to reveal fine steps structure on surface, the image was acquired at 0.8 kV of landing voltage. This allows the very fine structure of surface steps to be clearly visible (image on right). Specimen courtesy of Dr. Yoshihiro Kamimura, National Institute of Advanced Industrial Science and Technology (AIST), Japan

SU new
SU 2

A Smart Detection System for Low Voltage BSE Imaging

Cross section image of 3D NAND; Oxide layer and Nitride layer of capacitor are easily distinguishable in the image due to BSE detection capability.

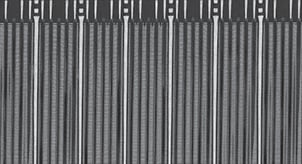

Image: Cross Section of 3D NAND (Acceleration Voltage: 1.5 kV)

Fast BSE Imaging: New Out-Column Crystal Type BSED (OCD)

By using new Out-Column Crystal Type BSED (OCD)*, image acquisition time was less than ONE SECOND, yet lower layer interconnect and Fin FET structure of SRAM are clearly visible.

*Option

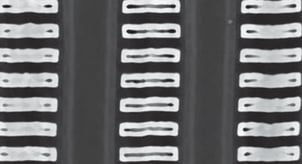

Image: Lower Layer Interconnect of 5 nm process SRAM (Acceleration Voltage: 30 kV, Acquisition time <1 second)

SU 3
SU 4

Enhanced User Experience with Advanced Automation

The “EM Flow Creator“ software option allows users to configure repeatable SEM operation sequences.

Various SEM functions can be assembled in the EM Flow Creator’s window by a drag-and-drop method and then saved as a recipe for later use.
Once a recipe is configured, automated data collection under the set conditions can be performed with high accuracy and repeatability.

Flexible Interface

Dual monitor configuration supports a flexible and highly efficient workspace. Display and save 6 signals simultaneously in order to acquire more information in less time.

1, 2, 4 or 6 signals, including the chamber scope(*) or SEM MAP, can be displayed simultaneously on a single monitor. By adding a second screen, the dual-monitor configuration supports enhanced productivity plus expanded workspace and allows the operation panel to be customized with submenus positioned anywhere on either screen.

SU 5

Specifications

Electron Optics Secondary Electron Image resolution 0.6 nm@15 kV
0.7 nm@1 kV (*1)
Magnification 20 to 2,000,000 x
Electron Gun Cold cathode field emission gun with anode heating system
Accelerating Voltage 0.5 to 30 kV
Landing Voltage(*1) 0.01 to 20 kV
Standard Detectors Standard Detectors Upper Detector (UD) with ExB filter: SE/BSE signal mixing function
Lower Detector (LD)
Option Detectors Top Detector (TD)
In-Column Middle Detector (IMD)
Out-Column Crystal Type BSED (OCD)
Semiconductor Type BSED (PD-BSED)
Cathodoluminescence Detector (CLD)
STEM Detector
Optional Accessories(*2) Energy Dispersive X-ray Spectrometer (EDS)
Electron Backscattered Diffraction Detector (EBSD)
Specimen Stage Stage Control 5-axis Motor Drive
Movable Range
 X 0 to 110 mm
 Y 0 to 110 mm
 Z 1.5 to 40 mm
 T -5 to 70°
 R 360°
Specimen Chamber Specimen Size Max. φ150 mm(*3)
